800 Psi 1150 PSI high- pressure high stiff carbon fiber tubes for oil field /sea water

800 Psi 1150 PSI high- pressure high stiff carbon fiber tubes for oil field /sea water

  • 800 Psi 1150 PSI high- pressure high stiff carbon fiber tubes for oil field /sea water
  • 800 Psi 1150 PSI high- pressure high stiff carbon fiber tubes for oil field /sea water
  • 800 Psi 1150 PSI high- pressure high stiff carbon fiber tubes for oil field /sea water
  • 800 Psi 1150 PSI high- pressure high stiff carbon fiber tubes for oil field /sea water
800 Psi 1150 PSI high- pressure high stiff carbon fiber tubes for oil field /sea water
Product Details:
Place of Origin: China
Brand Name: Xinnuo
Certification: CCC
Model Number: high pressure tube
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: negotiate
Packaging Details: Plastic bag with paper&wood box
Delivery Time: 3-7 working days
Payment Terms: T/T,L/C, Western Union
Supply Ability: 500 pcs per month
Contact Now
Detailed Product Description
Material: Toray T700 Carbon Fiber Outer Diameter: 49mm
Length: 1110mm Thickness: 7mm
Color: Black Both Ends: Seal Aluminum Joints

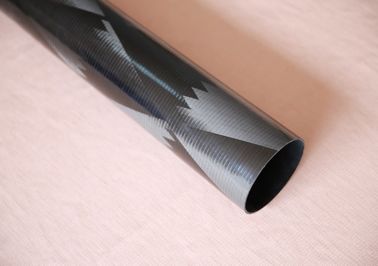

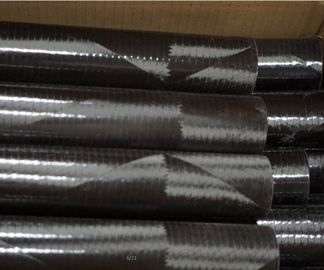

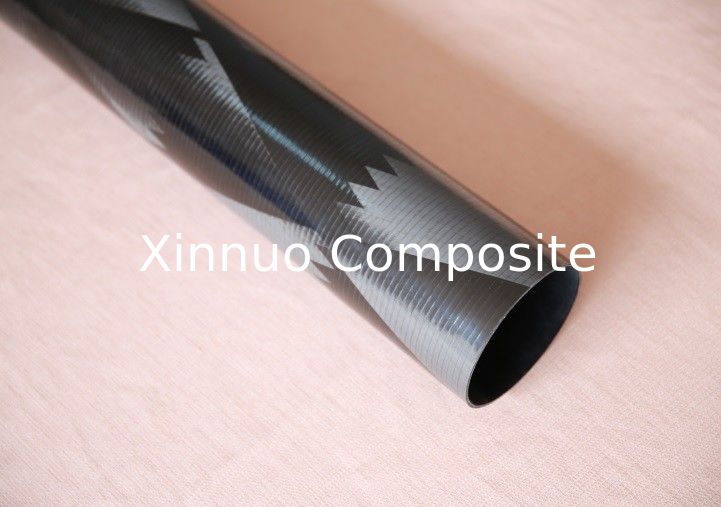

800 Psi 1150 PSI high- pressure high stiff carbon fiber tubes for oil field /sea water

Carbon fiber tube is light weight(it density 1.55g/cm3, 20%  weight of same size steel),High strength(tension strength≥3500Mpa, 7 times than steel).Corrosion resistant, So it used many areas to replace metal tubes.

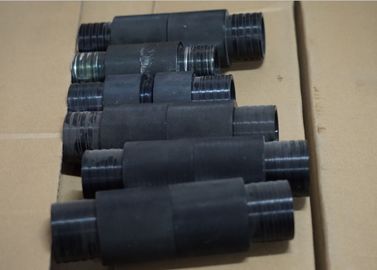

This type of carbon fiber tubes are used for oil field. Carbon fiber tube looks like a house/shell to protect the instrument inside it. Carbon fiber tube's  OD=49mm,ID=37.4mm,thickness only 5.8mm. We will add aluminum alloy joint to seal the both ends of carbon fiber tube. Then this carbon fiber tube working environment is bearing 800 PSI(80Mpa) outer pressure . high pressure carbon fiber tube will protect the inside instrument well.







Please compare carbon fiber tube tube and aluminum  tube as the follows:





Items



Size Density Weight Pressure Acid-base resistant Life time
Aluminum  tube 49*37.4*1110 mm 2.8 kg/m3 2.45 kg 80 Mpa bad 3
49*35*1110 mm 2.8 kg/m3 2.87 kg 115 Mpa bad 3
Carbon fiber tube 49*37.4*1110 mm 1.7 kg/m3 1.45 kg 80 Mpa good >3
49*35*1110 mm 1.7 kg/m3 1.75 kg 115 Mpa good >3

Carbon fiber tube resistant UV,Corrosion well. So many industry use carbon fiber tubes.For example working at sea water , Air compression tank etc.



The carbon fiber tube belong to customized products, It can be customized according to different  reuest. Just call us or email us for details!
