    Product Details:

    Place of Origin: China
    Brand Name: Xinnuo
    Certification: ISO9001-2000
    Model Number: carbon fiber rotor protection

    Payment & Shipping Terms:

    Minimum Order Quantity: 50 pcs
    Price: negotiate
    Packaging Details: Plastic bag with paper&box
    Delivery Time: 3-7 working days
    Payment Terms: T/T,L/C, Western Union
    Supply Ability: 1000 pcs per month
    Contact Now
    Detailed Product Description
    Material: T700 Carbon Fiber Application: Rotor Protection Sleeve Of Permanent Magnet Synchronous & Asynchronous Motor
    Bearing Temperature: 180℃ Rotor Speed: 20000 Rpm,max 100000 Rpm
    Process: Filament Winding Carbon Fiber Tube Surface: Can Be Sanded Or Painting Outside



    carbon fiber sleeve CFRP composite sleeve for electric rotors and generators high-speed permanent magnet machine



    carbon fiber sleeve is suit for rotor protection sleeve of  permanent magnet synchronous & asynchronous motor. It size can be customized,  Bearing temperature  max 180℃.  When the rotor's speed is lower, For example 2000 r/min, or 3000r/min,8000 r/ min  etc, choose stainless steel protection sleeve is good idea. Because it is lower cost. If the rotor's speed is higher, for example 20,000 r/min, 50,000 r/min, Please choose carbon fiber protection sleeve for the rotor.   Stainless steel rotor protection sleeve can't match so higher speed.

    The max speed for carbon fiber protection sleeve is 100,000 rpm.



    Name Material Rotor speed Working temperature
    carbon fiber sleeve CFRP composite sleeve for electric rotors and generators T700 carbon fiber can be customized, Max 10,0000 rpm max 180 degree



    Carbon fiber tube for rotor protction's Advantage:

    1. Can bearing high temperature-- 180 degree.

    2. Conductive heat quickly

    3. Non-Conductive magnet

    4. Good dynamic balancing when high-speed

    5. permanent magnet synchronous & asynchronous Motor rotor speed 60,000 rpm, The centrifugal deformation 0.2 mm

    It suit for the motor speed > 10,000 rpm

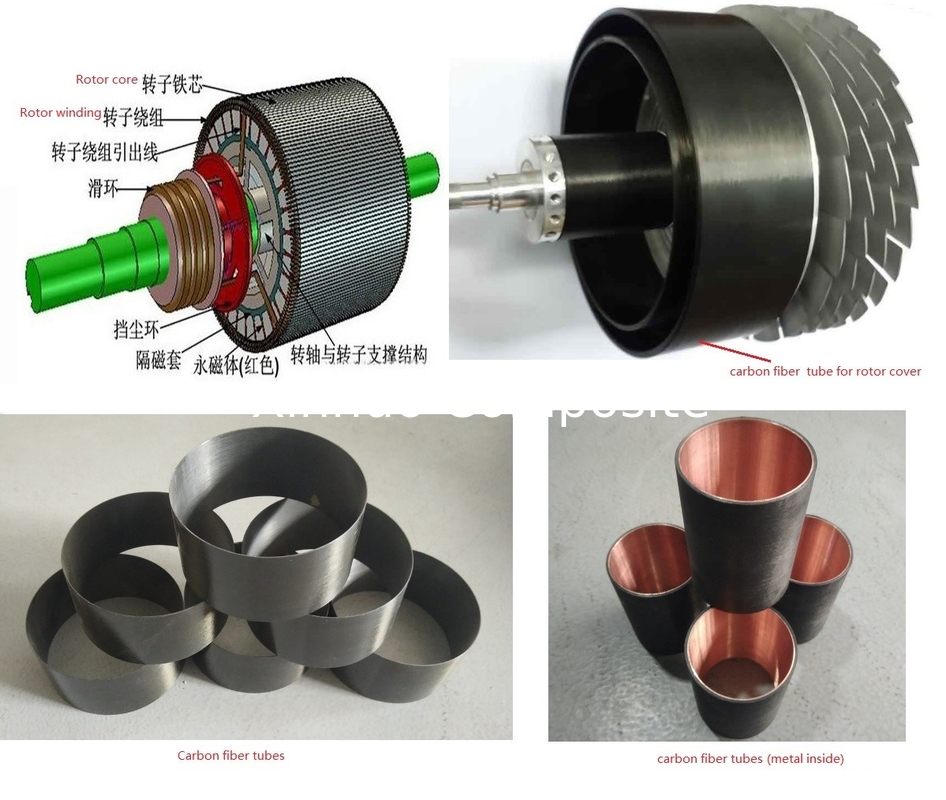

    There are two way to produce the carbon fiber  rotor cover:

    1.Produce carbon fiber tube first ;Then Put the present carbon fiber tube cover the outside of rotor

    2.Produce the carbon fiber cover directly outside of the rotor



    carbon fiber  sleeve  CFRP composite sleeve for electric rotors and generators  high-speed permanent magnet machine



    carbon fiber  sleeve  CFRP composite sleeve for electric rotors and generators  high-speed permanent magnet machine



    carbon fiber  sleeve  CFRP composite sleeve for electric rotors and generators  high-speed permanent magnet machine
