3/5/8/10mm 500*600mm 3K plain matte carbon fiber sheet/plate with +/-45 or 0/90 degree

3/5/8/10mm 500*600mm 3K plain matte carbon fiber sheet/plate with +/-45 or 0/90 degree

 The Carbon fiber Plates/sheets are multiple layers of unidirectonal carbon fiber oriented at  0/90 degree(can be +/-45 degree, Client need to note us, Otherwise we will do default 0/90 degree), The surface is a layer of 3K plain weave carbon fiber.

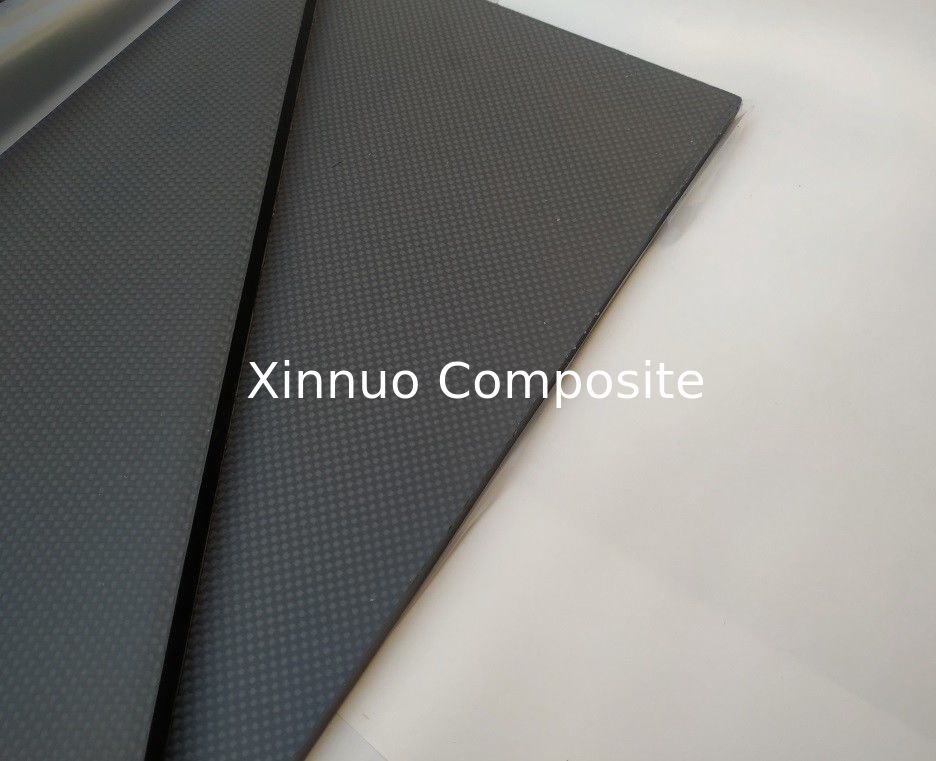

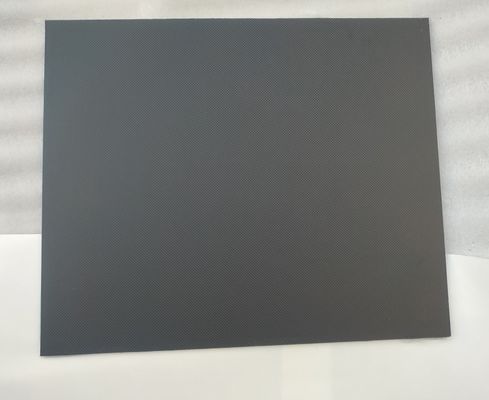

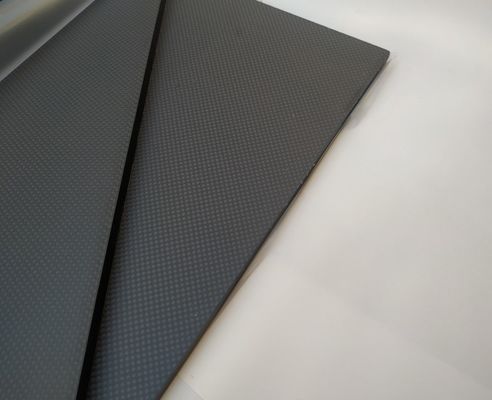

See the 3K plain matte carbon fiber plate picture for example.

It details as follows:

Carbon fiber plates/sheets have advantages as follows:

• High strength and stiffness with low weight
• Excellent fatigue resistance
• Dimensional stability: Low to Zero CTE (Coefficient of Thermal Expansion)
• X-Ray transparency

So it can be used for the following applications:

• Light weight strong structural components,for example UAV drone,bridge panel,airplane panel;
• Replace other material to increase strength,for example wall, bridge pier;
• It good performance for X-Ray transparency,So it can used for Medical radiation equipment lying board

Carbon fiber sheets/plates can be customized.  for example 300*300mm,400*500mm, 500*500mm ,1000*6000mm ,1m*1.2m etc.Thickness can from 1mm to 20mm,We have the capacity to  produce carbon fiber  sheets/plates with differnt thicknesses and sizes.

You can talk to our engineer for your specific needs.
