| Place of Origin: | China |
| Brand Name: | XN |
| Certification: | CCC |
| Model Number: | carbon fiber rectangular tubing |
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | US $10~$70/pc |
| Packaging Details: | sea worthy wood case or paper box |
| Delivery Time: | 2~4 weeks according to the quantity |
| Payment Terms: | T/T,L/C, Western Union |
| Supply Ability: | 1000 pcs per month |
| surface: | High glossy/matte |
| Process: | Bag Pressure(or Mold Pressure) | Material: | 100% Carbon Fiber |
|---|---|---|---|
| Thickenss: | 1~10 Mm | Shape: | Square Rod Or Rectangle Rod |
| Carbon Weave: | Twill Or Plain |

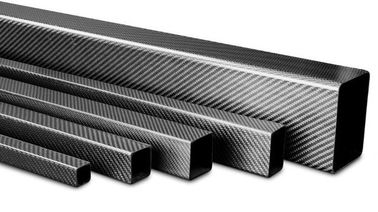

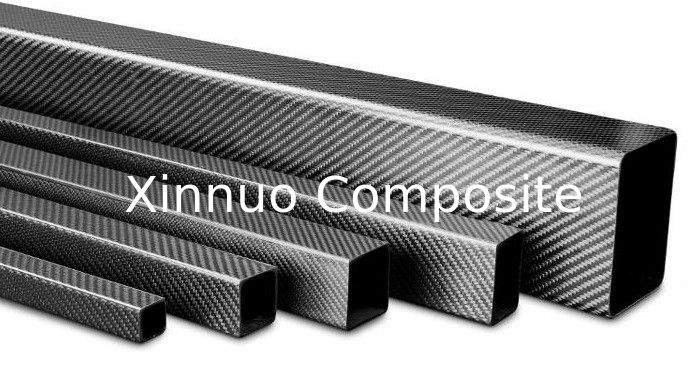

carbon fiber square rod frame rectangular rod tubing and connectors with good structural properties
1. Pure carbon ,High strength light weight,Nice surface
2. Raw Material :Imported Taiwan Or Japan Toray Carbon fiber fabric
3. Outside 3K +Inside UD Carbon
This carbon fiber square rectangular rod can used for building frame,tent pole etc.
We can supply the present size( we have molds at workroom) as follows:
| Shape | Width*Height | Thickness | Max length |
| carbon fiber square rod | 25*25mm | 1/1.5/2 mm | 1000 mm |
| carbon fiber square rod | 30*30mm | 0.6~4 mm | 1200 mm |
| carbon fiber square tubing | 40*40mm | 0.6~10 mm | 2000 mm |
| carbon fiber rectangular tubing | 70*50mm | 1~10 mm | 3000 mm |
| carbon fiber rectangular tubing | 120*68mm | 1~10 mm | 1500 mm |
| carbon fiber rectangular tubing | 200*100mm | 1~10 mm | 2200 mm |
| carbon fiber rectangular tubing | 300*150mm | 1~10 mm | 2300 mm |
| carbon fiber rectangular tubing | 385*170mm | 1~20 mm | 1900 mm |

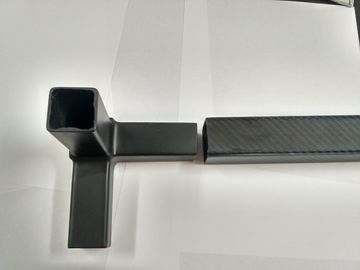

We also have different size carbon fiber square rod connectors to connect the carbon fiber square tube.
